Chemically Cross-Linked XLPE Material Compounds
- Voltage Range: 10kV and below; 35kV and below; 110kV and below, offer excellent electrical insulation, heat resistance, and long-term stability, and can be customized to specific voltage levels.
- Strict compliance with international standards such as IEC, ASTM, EN, and GB/T ensures that the products meet internationally advanced standards in electrical performance, heat resistance, and reliability.
Product Detailed Specifications
Appearance

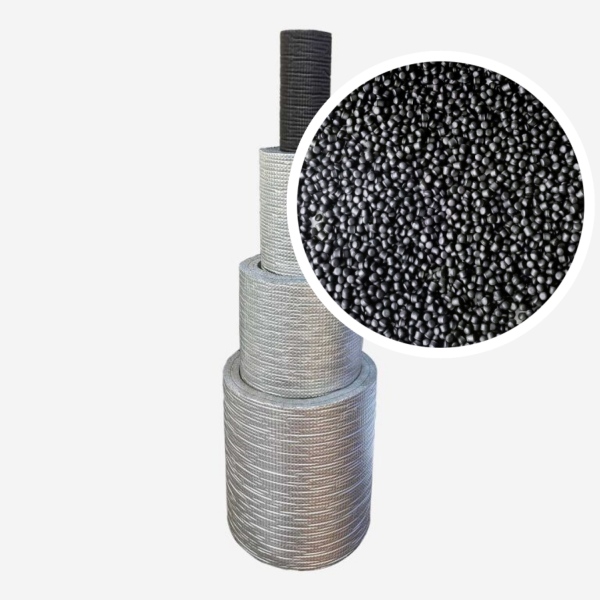

Chemically cross-linked polyethylene (XLPE) compound pellets: Supplied as cylindrical or spherical, uniformly sized, free-flowing pellets with a smooth surface.
Color: Commonly available in creamy white or black (with carbon black added for enhanced UV resistance); other colors can be customized.
Odor: Odorless
Packaging: Typically in 25 kg moisture-proof polyethylene bags, with 500 kg or 1000 kg bulk bags available upon request.
Storage: Store in a cool, dry, well-ventilated area away from direct sunlight. Avoid contamination and high temperatures before processing.
This physical form ensures consistent extrusion performance during cable production, reduces material waste, and improves insulation uniformity.
Technical Parameters
| Item | Typical Value | Test Method |
| Density | 0.92 – 0.94g/cm³ | ISO 1183 |
| Tensile Strength | ≥ 15MPa | ISO 527 |
| Elongation at Break | ≥ 400% | ISO 527 |
| Shore Hardness (D) | 45 – 55 | ISO 868 |
| Volume Resistivity | ≥ 1×10¹⁴Ω·cm | IEC 60093 |
| Dielectric Strength | ≥ 25kV/mm | IEC 60243 |
| Thermal Aging (135°C, 7 days) | Retention ≥ 70% | IEC 60811 |
| Continuous Operating Temperature | 90°C | — |
| Short Circuit Temperature (5s) | 250°C | — |
Common Models & Specifications
| Grade | Application | Cross-linking Type | Color | Recommended Voltage Class |
| XLPE-90C | General-purpose insulation | Chemical (peroxide) | Natural | 0.6/1kV LV cables |
| XLPE-110C | Heat-resistant insulation | Chemical (peroxide) | Natural / Black | MV cables up to 35kV |
| XLPE-HV | High-voltage insulation | Chemical (peroxide) | Natural | HV cables up to 220kV |
| XLPE-SHEATH | Sheathing compound | Chemical (peroxide) | Black | Cable sheathing and protection |
Product Feature
- Thermal stability, with a continuous operating temperature of up to 90°C and a short-circuit temperature of up to 250°C.
- Excellent electrical properties, including high dielectric strength, low dielectric loss, and excellent insulation resistance.
- High mechanical strength, flexible and stretchable without deformation.
- Can withstand sheath cracking, corrosion, and oxidation caused by harsh environments.
- Excellent extrusion processability, resulting in a smooth insulation surface and uniform thickness.
Applications
Chemically cross-linked XLPE compounds are widely used in the insulation and sheathing of power transmission and distribution cables, including:
- Low voltage power cables (0.6/1kV)
- Medium voltage cables (10–35kV)
- High voltage XLPE cables (up to 220kV)
- Control and instrumentation cables
- Renewable energy cables (solar, wind power)
Submarine and underground power systems
ZMS Material Services & Logistics
Professional Technical Support
ZMS’s experienced materials engineers provide guidance on compound selection, cable insulation design, and custom formulations for various grades. We ensure that every batch meets your electrical, mechanical, and fire safety requirements.
Quality Assurance & After-Sales Service
Each batch of material pellets undergoes rigorous quality control, including density, dielectric strength, and flame retardancy testing. Our after-sales team is available to provide consultation, troubleshooting, and replacement services if necessary.
Customized Packaging Solutions
ZMS Material compounds are supplied in pellet or granular form and are typically packaged in moisture-proof polyethylene bags, kraft paper drums, or plastic drums. We can also provide custom packaging with custom graphics to protect the integrity of the material during transportation and storage.
Flexible Shipping & Delivery
We work with reliable logistics partners to offer global shipping services, including container, pallet, or bulk shipping. Dedicated personnel and meticulously planned shipping procedures prevent moisture, heat, or mechanical damage, ensuring the compound arrives in optimal condition.
